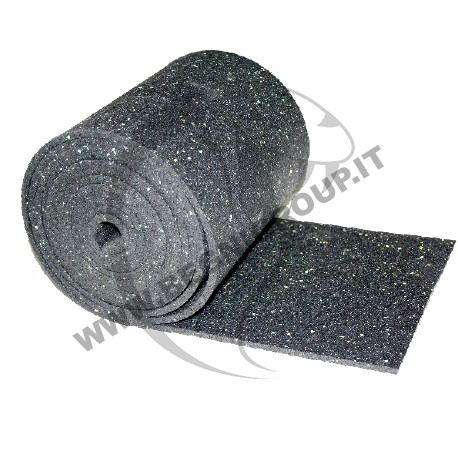

ANTI-SLIP MAT, STANDARD QUALITY
Max load 250t/mq - To be applied to the base of the load to increase the friction coefficient
COBRA® anti-slip pads are suitable as auxiliaries for load securing of all cargo. Anti-slip mats can be re-used many times until they reach the replacement state of wear.
The cavity proportion absorbs impurities and moisture off the loading area und thus prevents a decrease of the coefficient of sliding friction. Can be easily cut with a shear or a carpet cutter.
Sizes available
✔ Thickness 3mm | Dimension 150x10000mm | Max Pressure 90t/mq
✔ Thickness 4mm | Dimension 250x5000mm | Max Pressure 125t/mq
✔ Thickness 8mm | Dimension 250x5000mm | Max Pressure 250t/mq
✔ Thickness 8mm | Dimension 1000x5000mm | Max Pressure 250t/mq
✔ Coefficient of sliding friction achieved in laboratory: μ > 0,79.
✔ Coefficient of sliding friction achieved on field of application: μ > 0,60.
✔ Reusable.
✔ Compliant to VDI 2700.
Sheet 15 of VDI 2700 defines the requirements for anti-slip mats: “an anti-slip mat is of sufficient quality and strength if a tensile strength of at least 0,6 Newtons per square millimeter (N/mm2) is achieved and the elongation at break is at least 60%”.Severe tests carried out by Fraunhofer Institute to determine the value of the friction coefficient (μ) ascertain COBRA® anti-slip pads totally satisfy the German Directive VDI 2700.*
